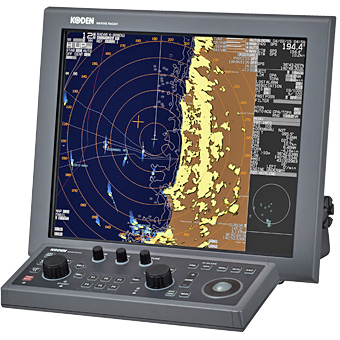

Koden MDC-7900 19" Radar with Chart Overlay

Koden MDC-7900 series is the latest 19" high performance radars from Koden with radar overlay onto C-Map Charts.

  • MDC-7906 4ft or 6ft Open Scanner 6kW 72NM
  • MDC-7912 4ft, 6ft or 9ft Open Scanner 12kW 72NM
  • MDC-7925 6ft or 9ft Open Scanner 25kW 96 NM

Target Tracking with up to 100 Targets Fitted as Standard
ATA (Automatic Tracking Aid) tracks up to 100 targets.  Vessels being tracked are easily identified with a number and vector line.  Detailed information such as CPA (Closest Point of Approach), TCPA (Time to Closest Point of Approach), Speed, Course etc can be displayed.  If the automatic aquisition zone is set, up to 100 targets entering the zone will be automatically locked and tracked.

1000 Target AIS Interface Fitted as Standard
When connected to an AIS receiver, the MDC-7900 series radar displays information on up to 1000 vessels equipped with AIS transmitters.  Detailed information such as vessel name, MMSI number, Speed & Course can be displayed on up to 3 targets.

Guard Zone
A user definable guard zone warns of targets/vessels entering or leaving the zone.

True Trail Function
When connected to a heading sensor and GPS moving targets will leave a true echo trail. Stationary targets such as land and buoys leave no trail, even while your vessel is moving.

  • 19" Sunlight viewable display
  • Clear image with High-speed sampling in short range
  • Auto gain with simple operation
  • Trackball operation
  • Uses C-Map Max Chart SD cards

Download a brochure

Download operational manual, installation manual & quick reference guide
