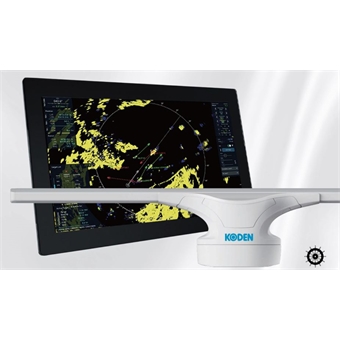

Koden KRS Series IMO Solid State Radars
The NEW Koden KRS Series radar uses solid-state radar technology to deliver exceptional resolution and superior target separation. Designed for compliance with the IMO standards IEC 62288 and IEC 62388 the KRS series stand out for their reduced maintenance, enhanced longevity and ease of operation.
- KRS-1611P supplied with 15.6" display
- KRS-1911P supplied with 18.5" display
- KRS-1211P supplied with 21.5" display
- KRS-1411P supplied with 24" display
- Supplied with 6ft open array
- 110W / 96NM
- 12/24/36/48/60 rpm
Powerful
With a powerful 110-watt solid-state transmitter, Koden KRS series delivers superior target separation and increased long-range resolution. The increased power output is equivalent to a 12kW magnetron radar and gives KRS series a range of up to 96 nautical miles.
State of the Art Design
Engineered for extremes the 100-knot wind rating is designed to meet the commercial grade IEC 62388. With the lower profile (335mm tall) the KR series allows greater flexibility of boat architecture and more adaptable installation options.
RangeFusion™ Technology
Combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
Doppler Target Tracking
Allows the radar to instantly detect targets in motion and display them in a unique colour palette. Inbound targets are red while outbound targets are green for improved awareness in high-traffic situations.
Simplified Installation
Designed to be easily retrofitted, KRS series radar are half the weight of comparable radars and supplied with small diameter interconnect cables which help to simplify cable runs and reduces installation time
