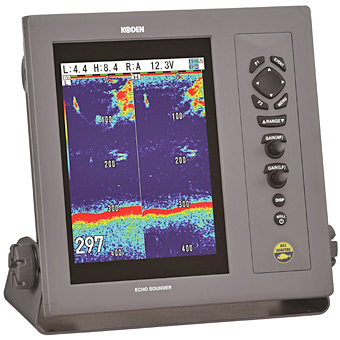

Koden CVS-1410 10.4" Digital Echo Sounder

Koden CVS-1410 colour 10.4” 1kW digital echo sounder is sunlight viewable and offers advanced filtering capabilities with its high tech digital signal processor. A High Sensitivity option is also available (CVS-1410HS)

  • 10.4" Sunlight viewable display
  • 1kW output
  • Dual frequency 50/200kHz
  • Digital Filtering feature - For a clearer picture
  • Exclusive Sona-Tone - Audible tones for targets
  • Image Storage facility - Stores up to 10 images
  • Fish Target Size - Displays approximate fish size
  • Automatic Gain, Shift and Range - For ease of use
  • Fishing Hot Spot function - Stores favourite spots
  • Output to an external monitor
  • NMEA data input / output
  • High sensitivity option

Digital Filtering Feature
Performance and fish detection are unrivalled with the Koden Digital Filtering (KDF) feature.  KDF eliminates clutter by filtering out the noise to provide a clear detailed image that enhances fish targets in shallow and deep waters.  Enhancing the fish targets makes it easier to differentiate between baitfish, larger shoals of fish and the seabed, resulting in a larger catch for the user.

High Power, Dual Frequency
Featuring the most popular combination of 50kHz and 200kHz, either dual or single frequency operation can be selected for best performance to suit conditions.

Choice of Screen Displays
There is a wide choice of display modes.  Choose from Normal High, Zoom High, Dual Frequency, Zoom Low, Normal Low plus Nav Displays.

Auto Function
Designed to plug in and display, the Auto Function mode automatically selects optimum Gain, Range and Shift.  This eliminates tedious settings so the user can just plug in and fish with confidence.

Output to External Monitor
A RGB output is available for connecting to an external VGA monitor.  This enables you to mount and display in two positions where necessary.

NMEA Data Input / Output
Provides depth output to Chartplotters, PCs or connect to a GPS to display your boat position.  When connected to an optional GPS, the Fishing Hot Spot leads you back to your favourite fishing sports or other previously saved positions stored in the memory.

Exclusive Sona-Tone
Koden's exclusive Sona-Tone identifies what is under the boat with different audio sounds for fish and shoals of fish.  Now there is no need to be looking at the echo sounder display to know what is under your boat.

Fish Target Size
With the new digital technology, the echo sounders can display the approximate size of fish targets down below on screen to help identify the fish.

Image Storage
Store up to 10 screen images with the built-in memory for recalling later by one touch of a button.  This feature is great for recalling a potential hot spot for review later.

Fishing Hot Spots
When connected to an optional GPS, Fishing Hot Spot leads you back to your favourite fishing spots or other previously saved positions stored in the memory.
