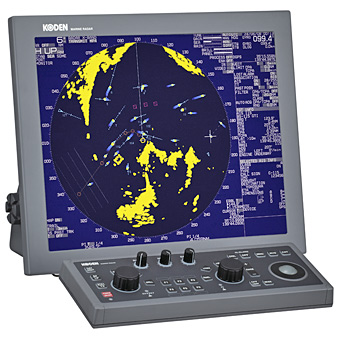

Koden MDC-2900P IMO Wheel Marked Radar

Koden MDC-2900P 19" IMO radars are fully compliant with IMO regulation MSC192(79) and meets the SOLAS carriage requirements for ships up to 10,000 GRT.

The 19" high resolution SXGA displays offer superb clarity & the new anti-reflective screens ensure it is visible in all conditions.

Comprising of the display and operator control panel, and a choice of 12kW or 25kW antennas with performance monitor.  A Black Box version where the owner supplies the monitor is also available.


  • MDC-2910P 12kW, 72NM 4ft, 6ft or 9ft Open Scanner
  • MDC-2920P 25kW, 96NM 4ft, 6ft or 9ft Open Scanner

CFAR
The new CFAR function provides vastly superior semi automatic clutter suppression.  Targets remain easily visible when compared to conventional use of sea and rain clutter controls.

True Trail Function
Clearly identifies moving targets from stationary targets.  The display shows exact movement of other vessels like drawing tails.  Even when your range is changed, a new trail appears past drawing tails.  3 types of shape are available.

Built-in ATA - 60 Targets
ATA (Automatic Tracking Aid) or target tracking is fitted as standard and tracks up to 60 targets.

Built-in 254 Targets AIS Interface
The MDC-2900 series is fitted with the AIS interface as standard.  When connected to an AIS receiver, the radar displays information on up to 254 vessels equipped with AIS transmitters.  Detailed information such as Vessel Name, MMSI Number, CPA, Speed, Course etc can be displayed.

User Definable Function Keys
Six programmable function keys let the user programme their own commonly used functions thus avoiding use of menus and enhancing the operators use.

  • 19" Colour display
  • Performance monitor as standard
  • Suitable as primary radar up to 10,000 GRT
  • ATA Target Tracking for up to 60 targets
  • True Trail function
  • Dual Station display option
  • Log/Gyro interface option

MDC-2900P IMO Black Box Radars
MDC-2900PBB consists of the operator control panel, the antenna and the black box processor which is used in conjunction with an owner supplied IMO approved high resolution colour LCD monitor.  Includes the performance monitor.

  • MDC-2910PBB 12kW, 72NM 4ft, 6ft or 9ft Open Scanner
  • MDC-2920PBB 25kW, 96NM 4ft, 6ft or 9ft Open Scanner

Download a brochure

Download Operation Manual
